Simulate dry, dusty environments to evaluate dust ingress resistance — Assess performance degradation and IP protection ratings for products across automotive, aerospace, electronics, military, and telecommunications sectors.

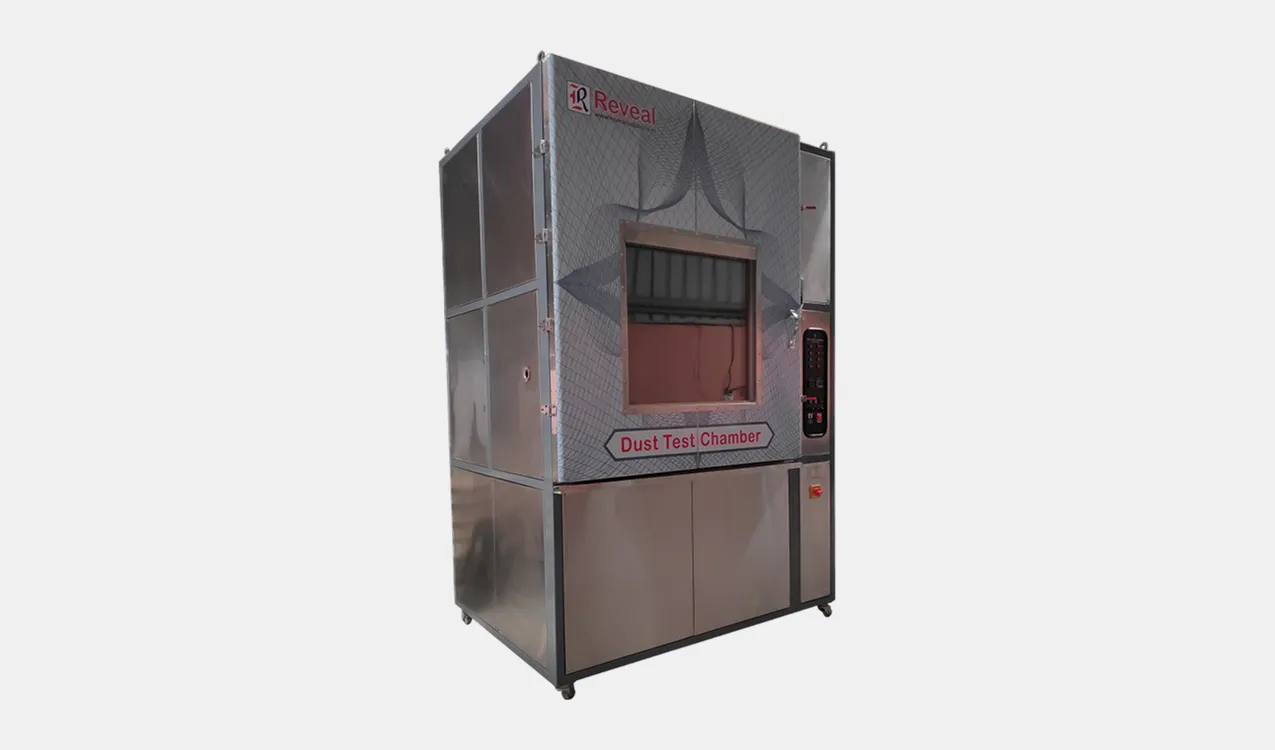

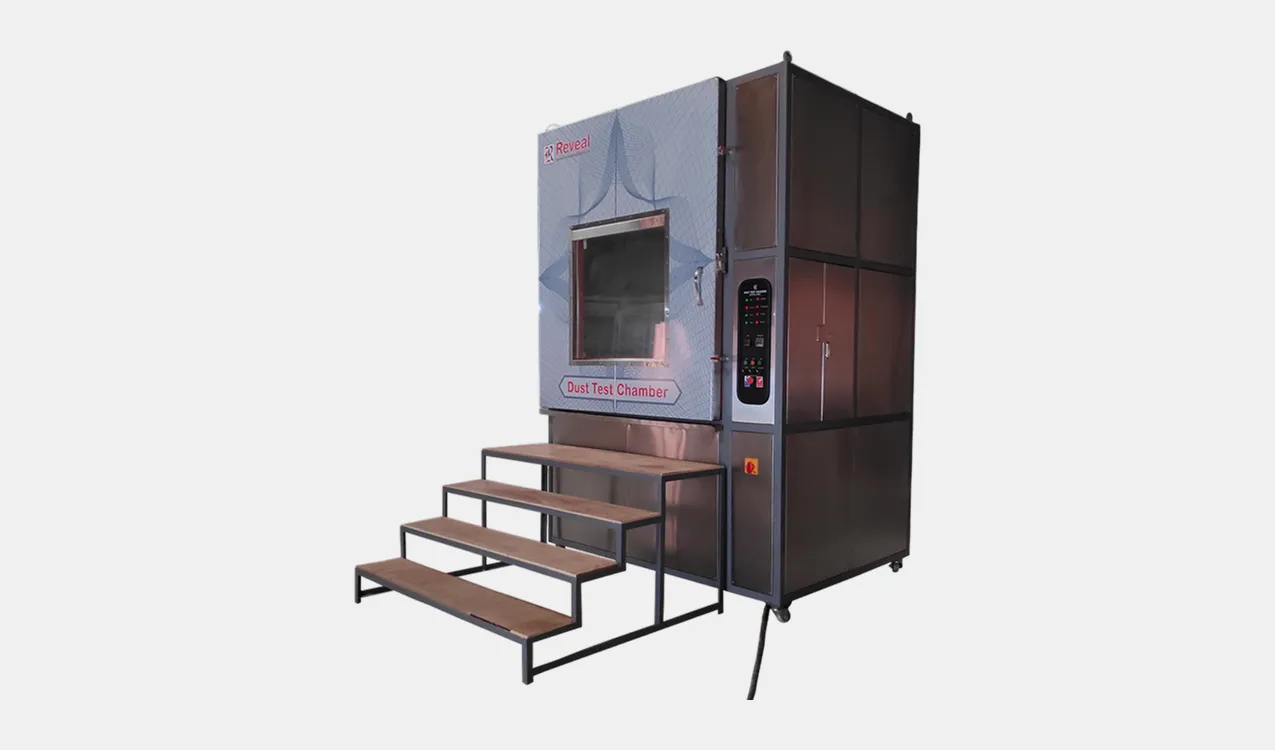

Dust Test Chambers are specialized environmental testing systems designed to simulate dry, dusty environments and evaluate the resistance of products, components, and enclosures to dust ingress. By replicating the conditions specified in IP5X and IP6X protection ratings per IEC 60529, as well as blowing sand and dust profiles per MIL-STD-810, these chambers enable manufacturers to verify that their products meet the required protection standards before field deployment.
All models conform to IEC 60529 and ISO 20653:2006 test standards.
| Specification | Unit | DC-421 | DC-1000 | DC-1875 |
|---|---|---|---|---|
| Test Space (W×D×H) | mm | 750×750×750 | 1000×1000×1000 | 1000×1250×1500 |
| Test Space (W×D×H) | inch | 30×30×30 | 39×39×39 | 39×49×59 |
| Test Volume | Ltr | 421 | 1000 | 1875 |
| Temperature Range | °C | +10 to +70 | +10 to +70 | +10 to +70 |
| Humidity Range | % RH | 45–75 | 45–75 | 45–75 |
| Dust Dosage | kg/m³ | 2–4 | 2–4 | 2–4 |
| Mesh Diameter | µm | 50 | 50 | 50 |
| Air Flow Speed | m/s | ≤2 (adjustable) | ≤2 (adjustable) | ≤2 (adjustable) |
| Test / Blow Time | hours | 0–999 | 0–999 | 0–999 |
| Time Accuracy | — | ±1 minute | ±1 minute | ±1 minute |
| Temp Sensor | — | PT 100 | PT 100 | PT 100 |
| Power Test Hole | mm | 50 | 50 | 50 |
| Wire Spacing | µm | 75 | 75 | 75 |
| Test Standards | — | IEC 60529, ISO 20653 | IEC 60529, ISO 20653 | IEC 60529, ISO 20653 |
Custom chambers manufactured according to customer requirements including chamber size, dust dosage, and combined temperature/humidity/vibration test configurations.
IP6X dust-tight certification testing for smartphones, tablets, laptops, wearables, and circuit boards. Verifies that enclosures prevent dust ingress that could cause short circuits, overheating, or connector failure.
Validation of sensors, headlights, air filters, ECUs, and cabin components against road dust ingress per ISO 20653. Ensures reliable performance in dusty off-road, desert, and high-pollution urban environments.
Component validation for dust and sand exposure during ground operations, desert landings, and low-altitude flight. Ensures avionics, sensors, and mechanical actuators maintain performance under particulate contamination.
Blowing sand and dust testing of radios, vehicles, weapons systems, and field equipment per MIL-STD-810 Method 510. Validates survivability and operational reliability in desert, arid, and high-dust combat environments.
IP-rating verification for outdoor base stations, antennas, enclosures, and network hardware deployed in dusty or arid locations. Ensures long-term network reliability without degradation from particulate contamination.
Dust ingress testing for power tools, construction equipment, outdoor lighting, and industrial instrumentation. Ensures sealed enclosures and gaskets maintain protection ratings throughout the product lifecycle in harsh environments.
